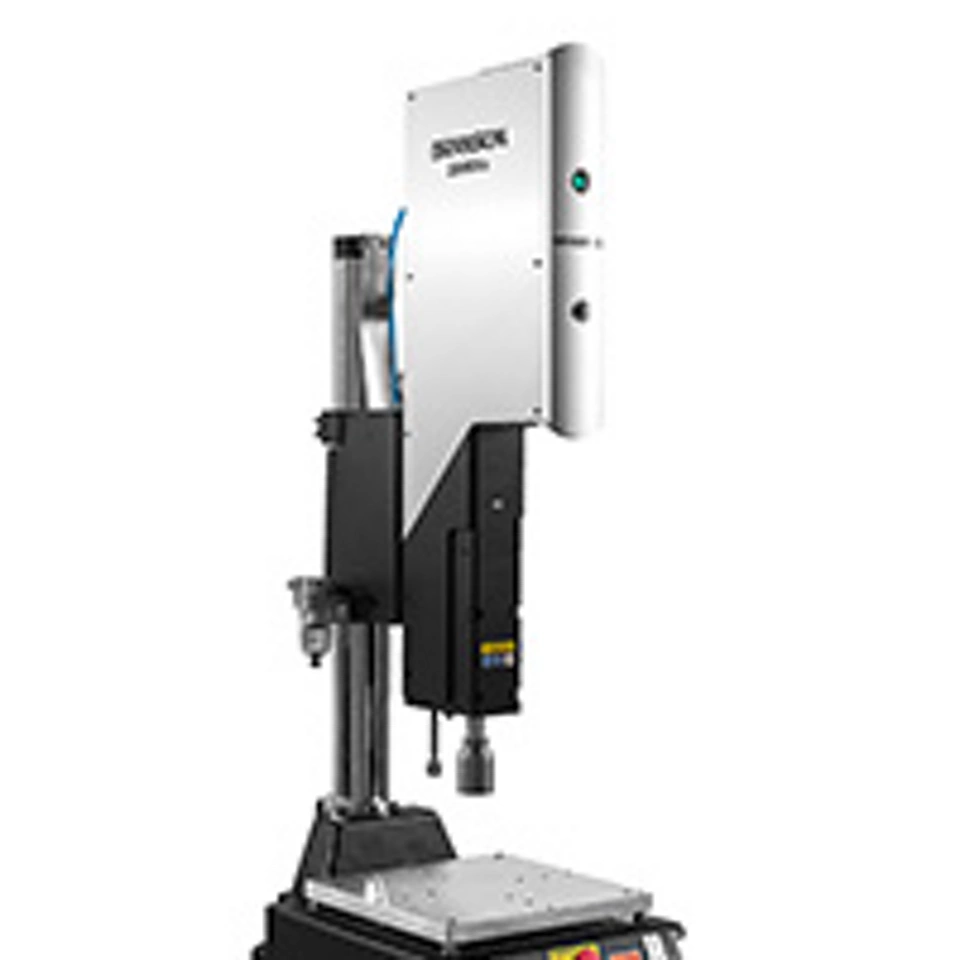

Branson 2000Xc Micro Actuator

The Branson 2000Xc Micro Actuator combines precise and consistent high-quality welds with detailed data, fast cycle time, and process control in a compact form factor. The actuator’s outline is optimized for 40kHz space savings applications in automation or benchtop use.
2XcMicroActuator

Specifications

    Actuation: Pneumatic

    Control Level: aec

    Cylinder Size: 40mm

    Frequency: 40 kHz

    Output Power: 0.8 kW

    Special Feature: Fully electronic, password-protected settings. Compact form factor

    User Interface: Touchscreen, LCD

    Weld Modes: Time, Energy, Distance, Peak Power, Ground Detect

Features

  • Fully electronic weld settings, hierarchical password protection, and Ethernet connectivity for remote control and data retrieval
  • Process controls to comply with ISO 13485 and FDA 21 CFR Part 11
  • USB barcode for recording Unique Device Identification or recalling presets
  • Local storage of last 100,000 welds
  • Rapid traverse feature for decreased cycle times
  • Weld by time, energy, peak power, ground detect, collapse distance, or absolute distance
  • Weld pressure stepping
  • Digital amplitude control with patented amplitude profiling
  • Compact form factor for automation or benchtop applications
