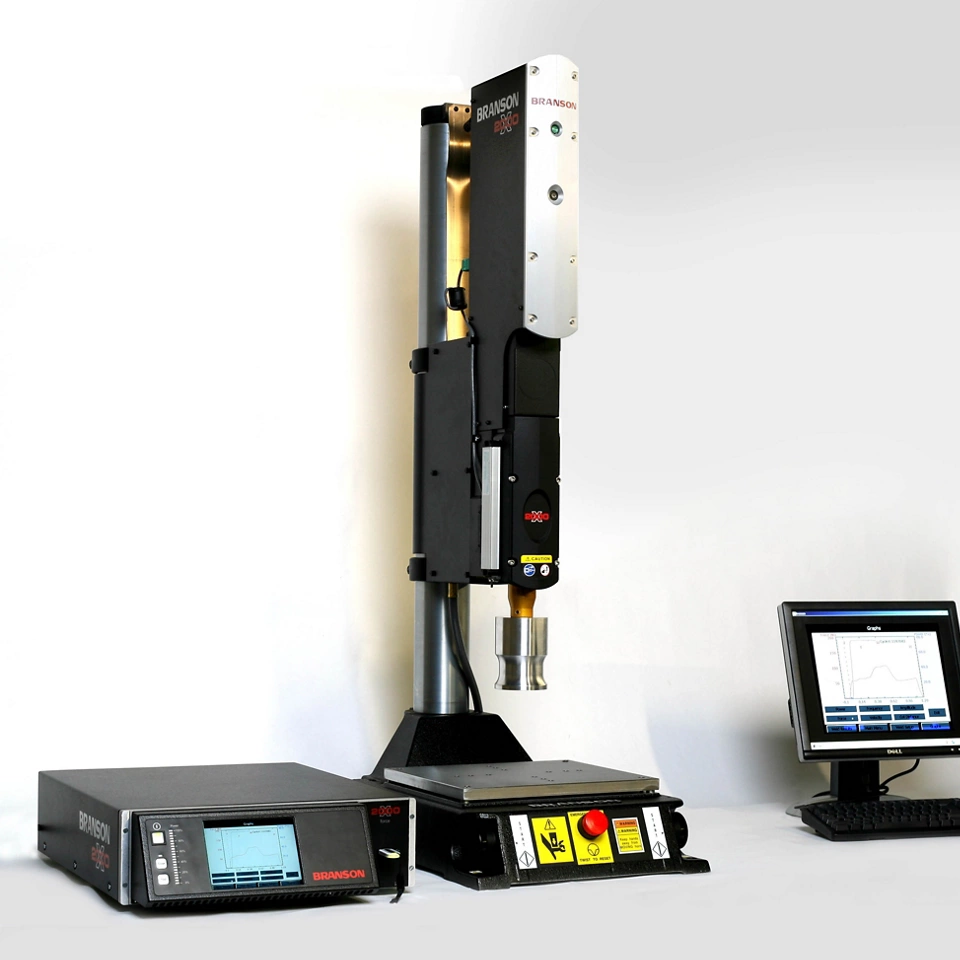

Branson 2000Xea Ultrasonic Welder

Designed to cover a broad range of applications, the 2000Xea facilitates welding in time mode, peak power mode, and energy mode. With digital amplitude control and Branson's patented amplitude profiling, the 2000Xea enables digital optimization of the weld recipe.
Fallback image

Specifications

    Actuation: Pneumatic

    Control Level: ae

    Cylinder Size: 1.5, 2.0, 2.5, 3.0, 3.25

    Data Interface: USB, Ethernet

    Frequency: 15, 20, 30, 40 kHz

    Output Power: 0.75 kW, 0.8 kW, 1.25 kW, 2.5 kW, 4.0 kW

    User Interface: Touchscreen, LCD

    Weld Modes: Time, Energy, Peak Power, Ground Detect

Features

  • Weld by time, energy, peak power, or ground detect.
  • Digital amplitude control with patented amplitude profiling.
  • Available in 15, 20, 30 and 40 kHz.
  • Optional VGA touch screen.
  • True digital autotune with memory for fully-automatic tuning and storage of frequency at the end of each weld.
  • Programmable starting ramp time.

Documents & Drawings

Brochure: 2000X Series Ultrasonic Plastic Welding Assembly Systems | Branson
English651.4 KB.pdf
