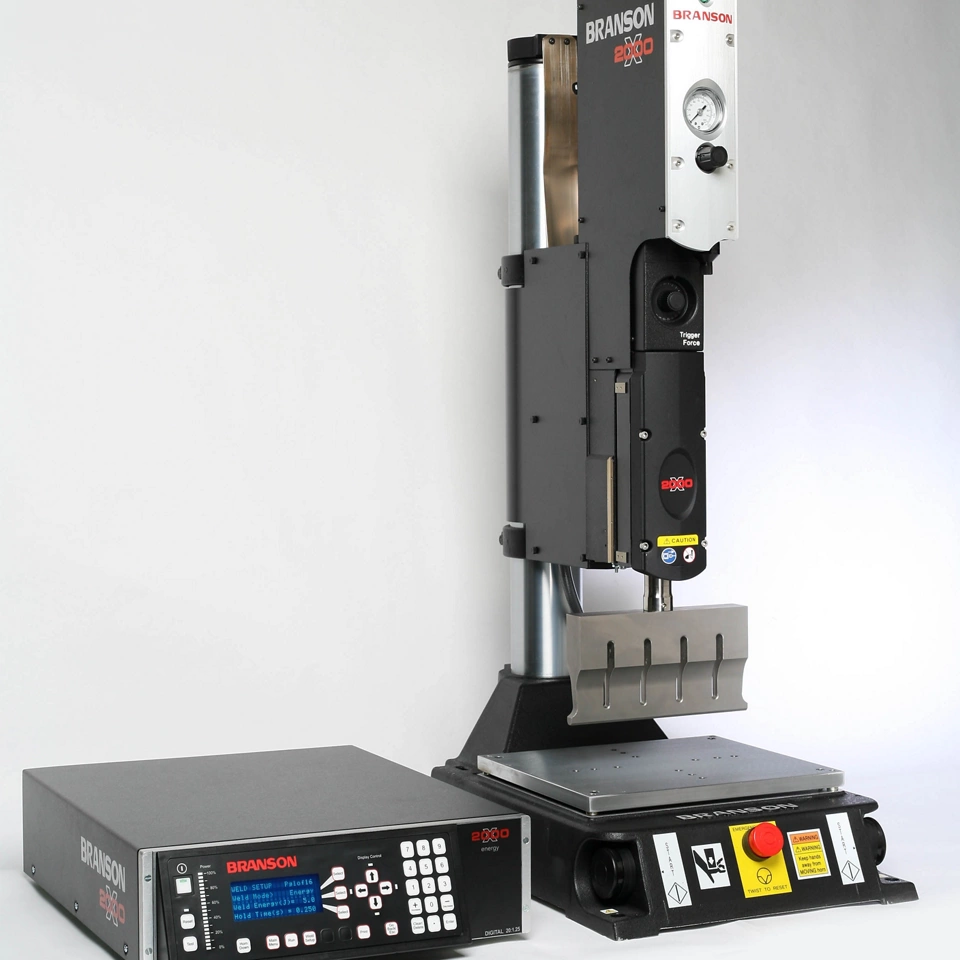

Branson 2000Xt Ultrasonic Welder

The 2000Xt welder accomodates basic welding in time mode and peak power mode. An optional ground detect kit facilitates cut-and-seal applications. Digital amplitude control is used to fine-tune critical applications, while digital autotune with memory provides fully-automatic tuning and stores horn frequency at the end of each weld.
Fallback image

Specifications

    Actuation: Pneumatic

    Control Level: t

    Cylinder Size: 1.5, 2.0, 2.5, 3.0, 3.25

    Data Interface: USB, Ethernet

    Frequency: 15, 20, 30, 40 kHz

    Output Power: 0.75 kW, 0.8 kW, 1.25 kW, 2.5 kW, 4.0 kW

    User Interface: Touchscreen, LCD

    Weld Modes: Time, Peak Power, Ground Detect

Features

  • Weld by time, peak power, or ground detect.
  • Digital amplitude control with patented amplitude profiling.
  • Available in 15, 20, 30 and 40 kHz.
  • True digital autotune with memory for fully-automatic tuning and storage of frequency at the end of each weld.
  • Programmable starting ramp time.

Documents & Drawings

Brochure: 2000X Series Ultrasonic Plastic Welding Assembly Systems | Branson
English651.4 KB.pdf
