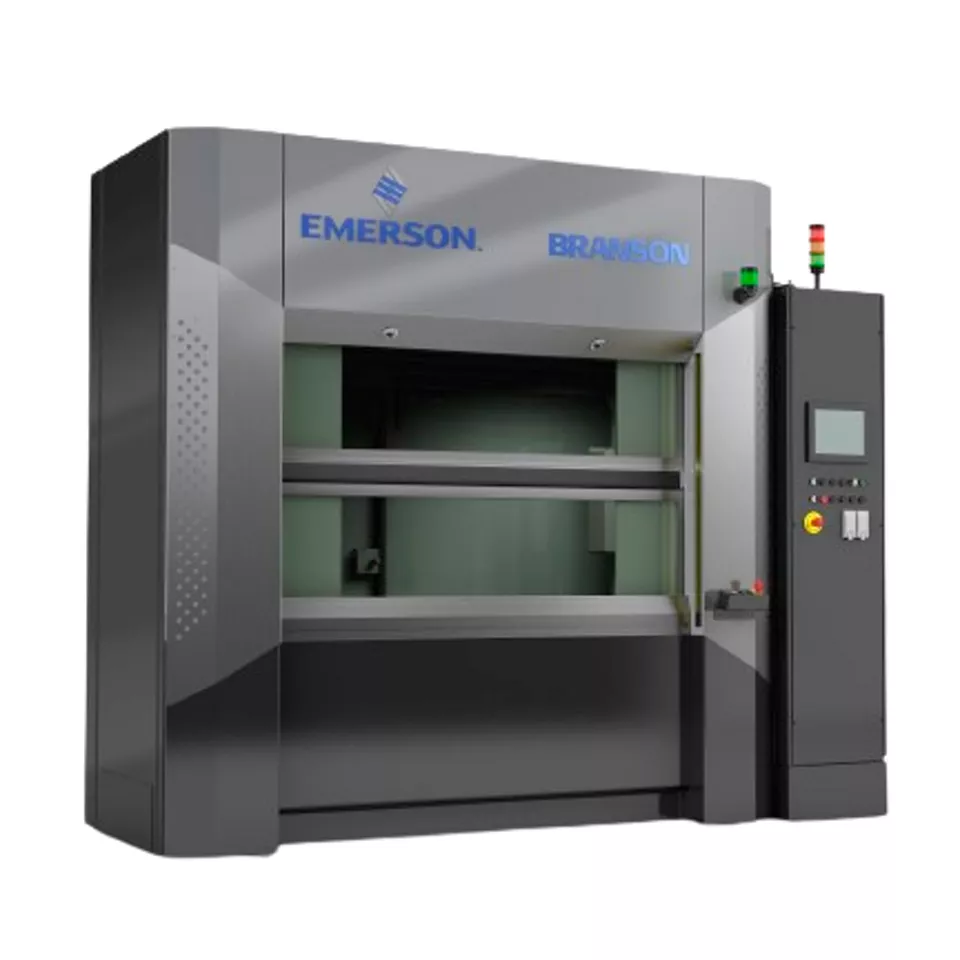

Branson™ Series GLX-4 Laser Welder

The Branson GLX-4 Laser Welder supports your need to manufacture large to extra large plastic parts as well as the growing industry demand for automation and IIoT capabilities (industry 4.0). The GLX-4 uses advanced Simultaneous Through-Transmission Infrared® (STTlr® ) laser welding technology that provides you with greater design freedom and increased production throughput as well as superior weld strength and quality with exceptional speed and flexibility.
Fallback image

Specifications

    Lift Table Max Speed: 500 mm/s

    Actuation: Servo

    Laser Energy Delivered to The Weld Line: Up to 5000W

    Communication Protocol: CANopen

    Cooling System: Water and Air Cooled

    Data Interface: USB, Optional Data Interface Gateway (DIG)

Features

  • GLX captures all the benefits of laser welding: The highest quality, particulate-free welds, Enhanced design flexibility to incorporate 3-D contours and sensitive components, and Greater materials compatibility and weld strength.
  • Patented laser welding process, Simultaneous Through-Transmission Infrared (STTIr), is scaled up to weld up to 1m nominally of weld length in 0.5-5 seconds.
  • Allows designers to incorporate barely visible, particulate-free weld lines into large part designs for superior aesthetics, maximum performance, and unmatched production efficiency.
  • Designed to the highest global standards for laser and machine safety.
  • Precise melt-down weld depth control.
  • Local, rapid-response technical expertise and repair service supported by Branson´s worldwide network of facilities.
  • Human Centered Design helps to reduce training and start-up times and enables changes to be made quickly

Documents & Drawings

Branson Plastic Welding Solutions for Auto lamps
English1.8 MB.pdf05/23/24
Brochure I GLX Laser Series I Branson
English2.5 MB.pdf09/23/25
Flyer: Automotive Head Light Assembly | Branson
English325.3 KB.pdf07/07/25
GLX High Power Laser Solutions Flyer | Branson - ENUS
English778.8 KB.pdf05/29/24
