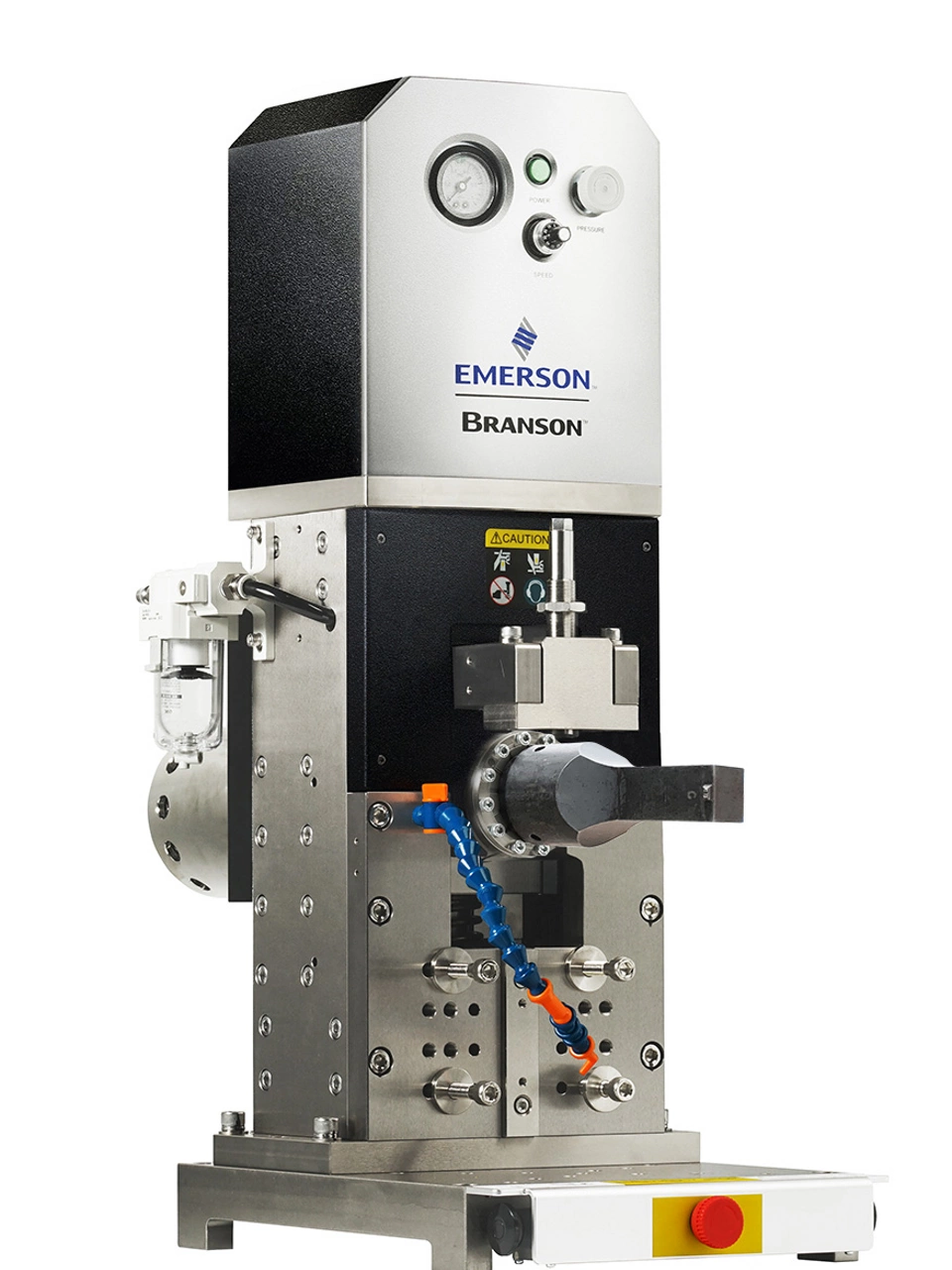

Branson GMX-20MA Ultrasonic Spot Welder

Branson’s GMX-20MA is a newly developed ultrasonic spot welder with robust mechanical design and precise welding process monitoring. The GMX-20MA ensures high welding quality and consistency, the superior performance which Branson ultrasonic metal welding technology guarantees to our customers.
Fallback image

Specifications

    Overall dimension (actuator only): 425 x 329 x 750 (mm) (L x W x H)

    Gross weight: 90 kg

    Working voltage: 220V (4KW), 3 phase 380V (5.5KW)

    Air supply requirement: minimum 0.6Mpa, 87Psi

    Maximum Stroke: 50mm

    Valid stroke: 11~45mm

    Power supply controller: 2000Xct

Features

  • Dual linear bearings ensure a smooth, precise welding process.
  • Nodal support design precisely balances the Horn and Anvil during the welding process. This ensures effective transfer of Ultrasonic energy for improved weld quality and consistency.
  • Precise linear encoder enables precise height and distance control during welding to ensure welding accuracy.
  • Increased weld modes options make it applicable for wider range of welding applications.
  • Upgraded control & power supply provides multiple real time welding data and quality monitoring.
  • Pressure trigger mechanism & load cell ensure accurate welding control & welding quality.

Documents & Drawings

Brochure: Ultrasonic Metal Welding Systems I Branson ENUS
English1.9 MB.pdf12/10/23
