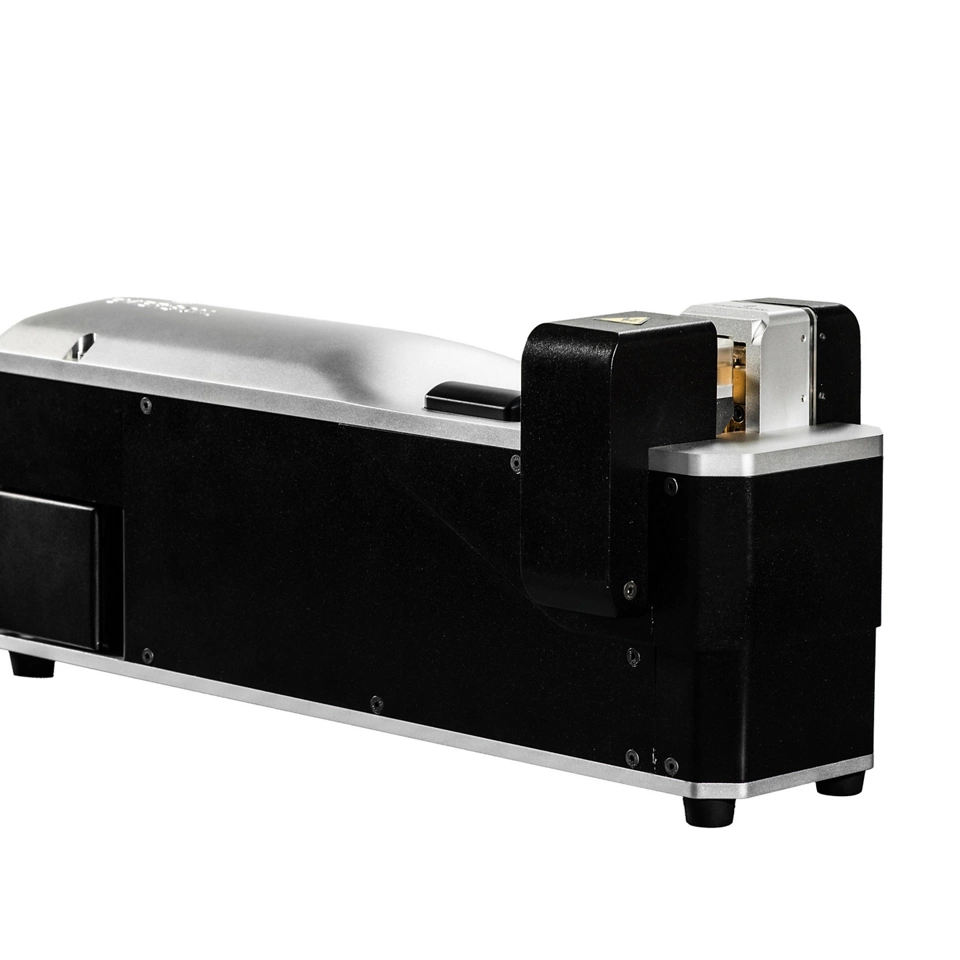

Branson GMX-W1 Wire Splicer

The Branson GMX-W1 joins wires reliably and quickly while providing maximum maneuverability. A user-friendly HMI and portable, ergonomic design make it easy to use as either an in-line or tabletop system. This product is designed for copper wire harness, although other materials may be possible upon testing and qualification.
Fallback image

Specifications

    Frequency: 20 kHz

    Output power: 4000 W

    Actuation: Pneumatic

    Cooling system: Air

    Pneumatics type: 5.5 bar (80 psi) clean, dry air

    Special feature: Cutter Module

    User interface: 22" capacitive touch screen

    Data interface: USB, Ethernet

    Input power: 200~230V single phase, 25A max

    Overall dimensions: 6.7" (W) x 7.9" (H) x 19.9" (L)

Features

  • Anti-side welding
  • Ergonomic design
  • User-friendly HMI
  • Automatic calibrations
  • LED color status indicator
  • 22-inch capacitive touchscreen
  • In-line wire cutter module
  • Capable of splicing wires with cross section up to 40mm²
  • Suitable for splicing wire with cross section of 0.13mm²
